I. Overview of Equipment

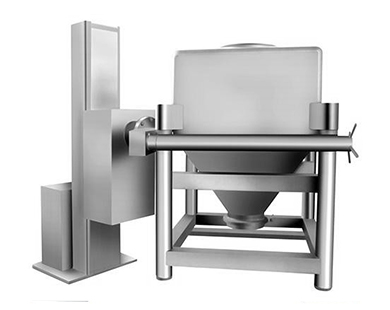

HLT column hopper mixer is mainly used for mixing granules and granules, powder and powder, granules and powder in the production of solid preparations.The machine has the functions of automatic lifting, mixing and descending. A hopper mixer and several hoppers of different specifications can meet the mixing requirements of different varieties and batches.It is an ideal equipment for general mixing in pharmaceutical factories and is widely used in chemical and food industries.

II. Working Principle
The machine consists of pillar, frame, rotary fork, drive, brake, control system and other components. The mixing hopper is pushed into the rotary fork and the nut is locked. The control system is started, and the hopper is raised to the mixing height and positioned reliably.The driving system mixes automatically according to the set time, speed and other data.After the mixing operation, the rotary fork rack stops vertically, the hopper drops to the ground automatically, the whole machine stops, and the process data is printed.Loosen the locking nut of the rotary fork holder and push the hopper out to the next step.

III. Equipment Characteristics
1. Intelligent PLC Control and Graphical Interface
2. The hopper has smooth interior and no dead angle, and the dust entry and cross-contamination are eliminated by mixing under sealed condition.
3. Configuration of anti-misoperation discharging butterfly valve
4. Easy to operate, maintain and clean
5. Mobile hopper is convenient for transporting materials and loading and unloading.
6. Mixing time and mixing speed can be adjusted by touch screen to ensure good mixing effect, automatic system positioning, automatic printing record, fault prompt and alarm.
7. Data can be stored and printed through micro printers

Model	Mixed speed RPM	Hopper volume L	Maximum loading volume L	Maximum loading Kg	Total power Kw	Weight Kg
HLT-50	3-20	50	40	25	3.7	600
HLT-100	3-20	100	80	50	3.7	700
HLT-200	3-20	200	160	100	4.4	800
HLT-300	3-20	300	240	150	5.2	900
HLT-400	3-20	400	320	200	5.2	1000
HLT-500	3-15	500	400	250	5.2	1200
HLT-600	3-15	600	480	300	5.2	1300
HLT-800	3-15	800	640	400	7	1600
HLT-1000	3-10	1000	800	500	7	2000
HLT-1200	3-8	1200	960	550	7	2200
